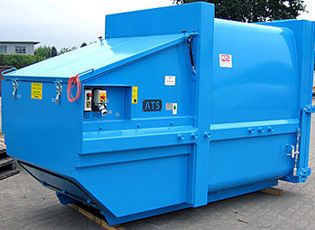

SPB skip type portable compactor (model E)
These days every company needs, for economical and environmental reasons, a well-considered conception for waste sorting, collection and disposal.
A reliable and economically working machine technology belongs to such a total conception. We therefore recommend the use of our new portable compactors of the model E generation with their numerous advantages.
Due to the innovative container construction without sections in connection with the well-considered and proven compactor technology a high compaction degree and consequently a higher filling density are ensured. The frequency of transport and, as a result, the costs for transport can be considerably reduced.
The special form improves clearly the discharge.
Furthermore the smooth container walls can be used as a big advertising space.
The machines are easy to maintain, extremely sturdy and very reliable.
They convince due to their well-planned, robust construction and a long service life.
Technical Specification for Portable Compactor SPB AN-E |
||||
Model
|
Capacity (m³)
|
Length (mm)
|
Width (mm) |
Height (mm) |
SPB 8 AN-E |
8 |
3.820 |
2.020 |
2.465 |
SPB 10 AN-E |
10 |
4.370 |
2.020 |
2.465 |
SPB 12 AN-E |
12 |
4.920 |
2.020 |
2.465 |
Power | 5.5 kW |
Compaction force | 34 to 340 kN |
Volume per stroke | 1.10 cbm |
Volume per hour | 110 cbm |
Time per working cycle | 36 s |
Protection |
16 A slow |
Ram stroke | 1.120 mm |
Filling height |
1.520 mm |
Filling opening bottom | 910 x 1.500 mm |
Filling opening top | 1.175 x 1.500 mm |
Total height | 2.460 mm |
Quality Features of the Portable Compactors, E-Generation
- Easy feeding and trouble-free discharge due to the smooth conical container construction (on 3 sides) without sections
- High filling weight due to circulation of the wasteat the curvatures of the container door
- The container is welded through
- Closing mechanism is easy to operate due to galvanized ratchet
- The container walls without section can be used as a big advertising place
- The deep ram penetration avoids piling-up in the filling opening of the material to be compacted Removable inspection hatches at the compaction body for good accessibility in case of repair or service works
- Adjustable ram, guided in polyamide
- Reinforced sliding plates with milled scraping edge in order to keep the space behind the ram clean
- Easy feeding due to low filing height
- Standard design with timer, oil and temperature control as well as motor protection
- Low noise level hydraulic pump
- Compactor floor made of high wear closegrained construction steel
We are in a position to meet all the special requirements due to a wide range of accessories such as:
- Manually or hydraulically operated lid over the filling opening
- Loading bay design
- Container Full / Pre-full light
- Leakproof
- Hydraulic retaining door, especially for compacting expanding materials
- Pendulum steel scraper at the bottom of the ram face
- Tipping devices for different types and sizes of containers
- Drum weighing system for fair charging of the participants
- Container full control and data transmission
